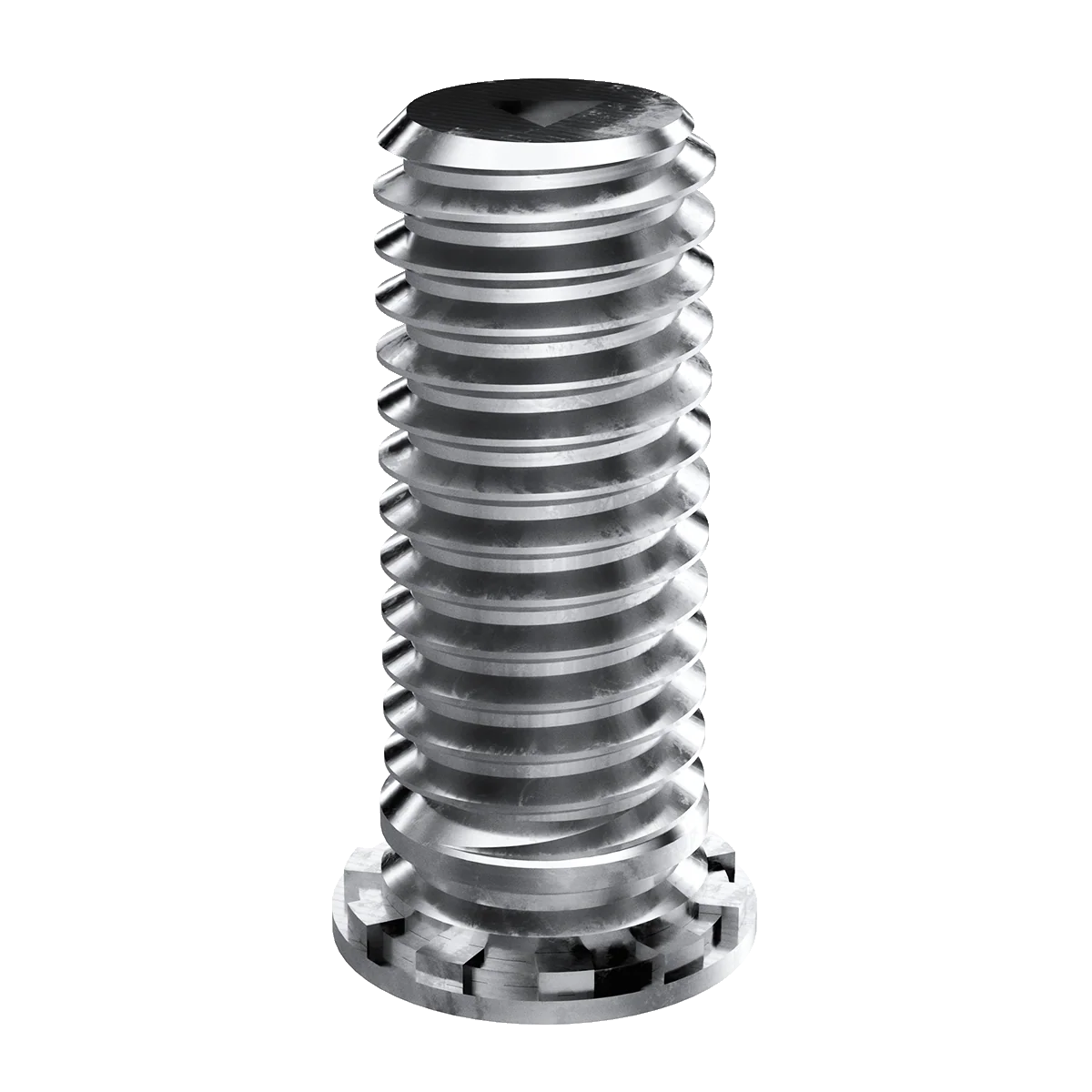

Self-Clinching Stud, Flush Head, 2024-T4 Aluminum, 1/4-20 x 0.750, 50 Pack

Self-Clinching Stud, Flush Head, 2024-T4 Aluminum, 1/4-20 x 0.750, 50 Pack

  • 1/4-20 x 0.75 Self clinching aluminum threaded stud
  • 1/4 (0.25) diameter, 20 Threads per inch, UNC thread size
  • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
  • CHA studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CHA420-12
  • Material: Aluminum; 2024-T4
  • Color/Finish: None /
  • Size: 420
  • Width: 0.34in [8.6mm]
  • Height: 0.34in [8.6mm]
  • Depth: 0.75in [19.1mm]
  • Weight:
  • Thread: 1/4-20 UNC x 0.75 in
  • Country of Origin: United States
  • Package Quantity: 50
  • Package Type: PolyBag
    • PDFPDF Drawing
    PDFData Sheet
    PDFInstallation Instructions
    $35,327.20
    Self-Clinching Stud, Flush Head, 2024-T4 Aluminum, 1/4-20 x 0.750, 50 Pack—
    $35,327.20

    Product Information

    Shipping & Returns

    Description

    • 1/4-20 x 0.75 Self clinching aluminum threaded stud
    • 1/4 (0.25) diameter, 20 Threads per inch, UNC thread size
    • External Thread, Class 2A, ANSI B1.1 (6g ANSI/ASME B1.13M)
    • CHA studs provide a strong flush-head assembly in material as thin as .040 in. (1.0 mm) with high torque-out and pushout performance.
  • MFG Item No: CHA420-12
  • Material: Aluminum; 2024-T4
  • Color/Finish: None /
  • Size: 420
  • Width: 0.34in [8.6mm]
  • Height: 0.34in [8.6mm]
  • Depth: 0.75in [19.1mm]
  • Weight:
  • Thread: 1/4-20 UNC x 0.75 in
  • Country of Origin: United States
  • Package Quantity: 50
  • Package Type: PolyBag
    • PDFPDF Drawing
    PDFData Sheet
    PDFInstallation Instructions
