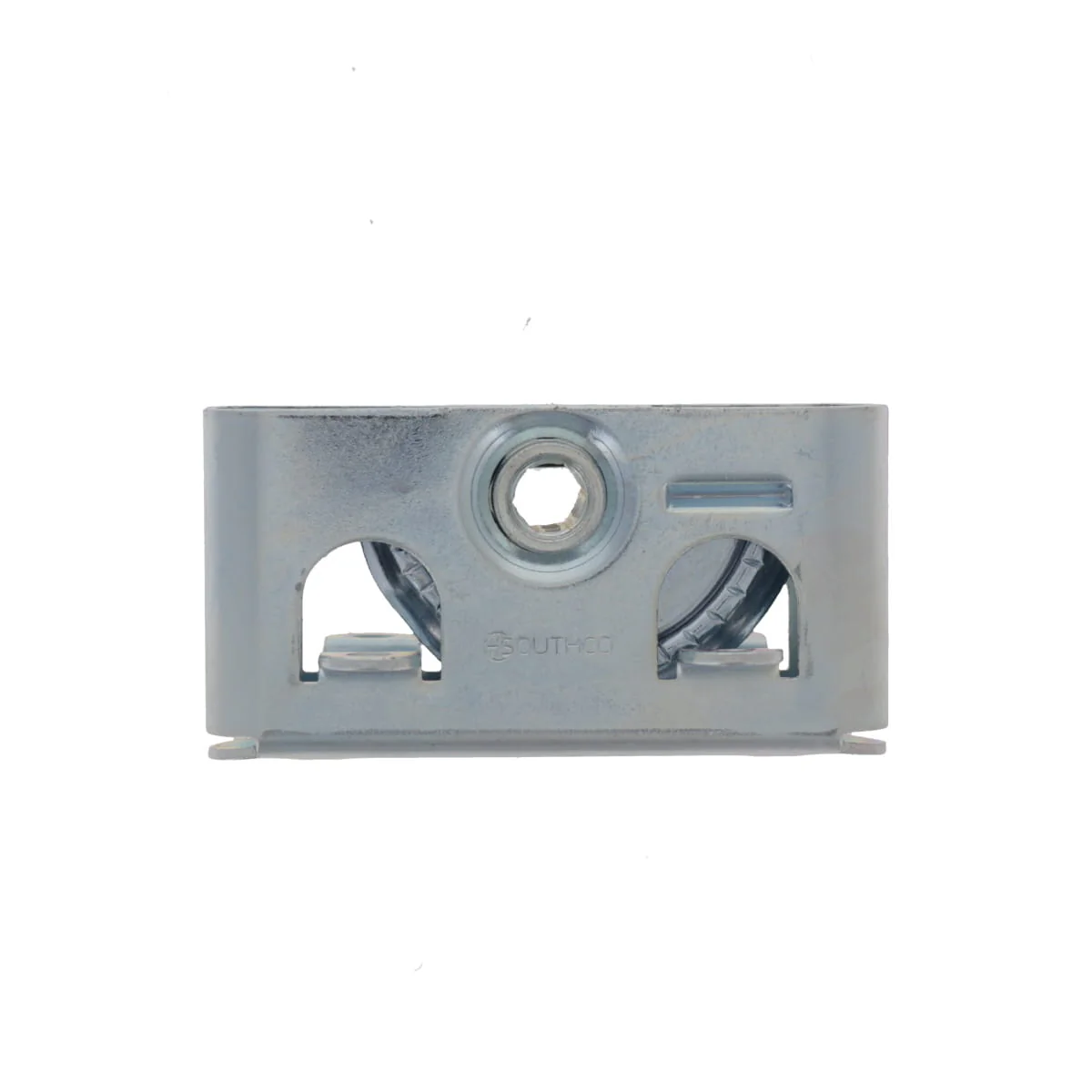

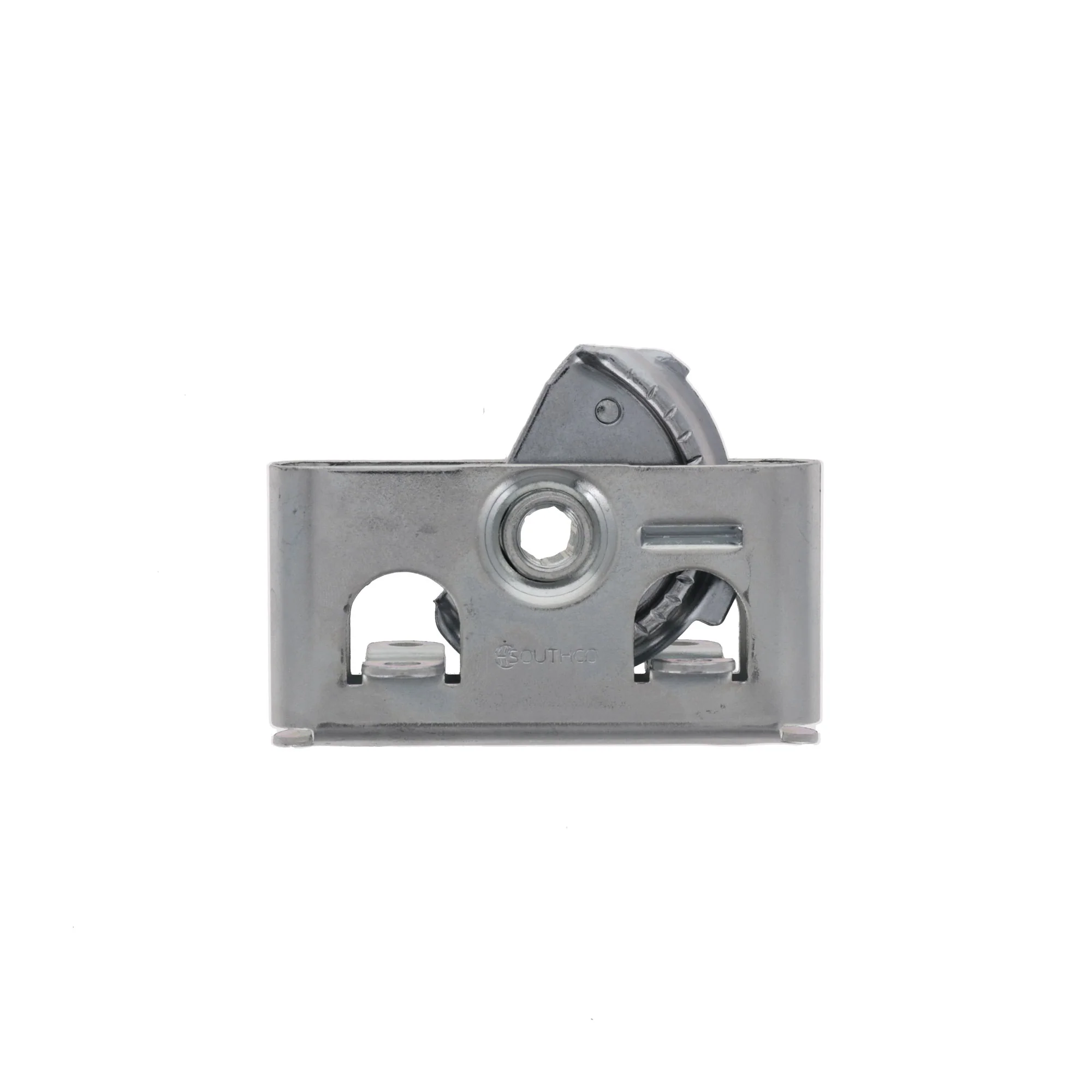

Southco Deep Tab Roto-Lock - Latch - R2-0169-02

Southco Deep Tab Roto-Lock - Latch - R2-0169-02

  • Rear-mount Roto-Lock latch pulls panels together for a concealed, high-strength joint, operated by a wrench for controlled access and repeatable closure in serviceable builds.
  • Built for enclosure panels, access doors, and modular structures that must assemble fast, stay tight in use, then disassemble for service or transport with less than one full turn of a wrench.
  • Deep Tab design suits thicker materials and locator mounting, helps maintain alignment during installation, and supports consistent pull-up across repeated assembly cycles.
  • Steel construction with bright zinc plated finish, specified to resist oxidation in typical industrial environments where hardware is handled, shipped, and reinstalled.
  • Order latch and receptacle separately, use receptacle 555-R2016002, and reference TCH downloads for PDF drawing and DXF to confirm hole sizing and panel prep before production
  • MFG Item No: R2-0169-02
  • Material: Steel
  • Color/Finish: Bright Zinc Plate /
  • Width: 3.40in [86.4mm]
  • Height: 1.72in [43.7mm]
  • Depth: 1.63in [41.3mm]
  • Weight: 0.27lb [0.1 kg]
  • Country of Origin: United States
  • Package Quantity: 1
    • PDFPDF Drawing
    DXFDXF File
    PDFData Sheet
    PDFSales Sheet
    $5.26

    Original: $15.03

    -65%
    Southco Deep Tab Roto-Lock - Latch - R2-0169-02—

    $15.03

    $5.26

    Product Information

    Shipping & Returns

    Description

    • Rear-mount Roto-Lock latch pulls panels together for a concealed, high-strength joint, operated by a wrench for controlled access and repeatable closure in serviceable builds.
    • Built for enclosure panels, access doors, and modular structures that must assemble fast, stay tight in use, then disassemble for service or transport with less than one full turn of a wrench.
    • Deep Tab design suits thicker materials and locator mounting, helps maintain alignment during installation, and supports consistent pull-up across repeated assembly cycles.
    • Steel construction with bright zinc plated finish, specified to resist oxidation in typical industrial environments where hardware is handled, shipped, and reinstalled.
    • Order latch and receptacle separately, use receptacle 555-R2016002, and reference TCH downloads for PDF drawing and DXF to confirm hole sizing and panel prep before production
  • MFG Item No: R2-0169-02
  • Material: Steel
  • Color/Finish: Bright Zinc Plate /
  • Width: 3.40in [86.4mm]
  • Height: 1.72in [43.7mm]
  • Depth: 1.63in [41.3mm]
  • Weight: 0.27lb [0.1 kg]
  • Country of Origin: United States
  • Package Quantity: 1
    • PDFPDF Drawing
    DXFDXF File
    PDFData Sheet
    PDFSales Sheet
